Fiat’s lineup of commercial vans—from the compact Fiorino to the spacious Ducato—meets diverse transportation needs, balancing urban agility with cargo capacity. This guide offers a detailed look at the dimensions of Fiat’s most popular models, including the Ducato, Doblo, Fiorino, and Scudo, enabling you to evaluate each van’s suitability for specific commercial or personal requirements.
Here, you’ll find essential measurements covering internal cargo volume, load length, roof height, and wheelbase for each Fiat van model. By understanding these key dimensions, you can select the ideal van for navigating city streets or transporting large loads. Whether prioritising compact manoeuvrability or maximum cargo space, this guide provides the comprehensive specifications needed to make an informed choice for your operational needs.
Fiat Ducato Van Dimensions
The Fiat Ducato is a versatile and popular choice for businesses and individuals needing a reliable, spacious van. Known for its adaptability, the Ducato comes in multiple configurations that cater to diverse cargo and operational requirements. With options spanning various lengths, heights, and payload capacities, it’s essential to understand the dimensions of each model to choose the right fit for your needs.
For businesses looking to enhance the functionality of their Fiat Ducato, explore Fiat Ducato Accessories including roof racks including modular racks, shelving, and internal storage systems that maximize your cargo space.
Internal Cargo Dimensions (mm)
| Interior Dimensions | L1 H1 | L2 H1 | L2 H2 | L3 H2 | L3 H3 | L4 H2 | L4 H3 |
|---|---|---|---|---|---|---|---|
| Volume (m³) | 8 | 10 | 11.5 | 13 | 15 | 15 | 17 |
| Load Length at Floor | 2670 | 3120 | 3120 | 3705 | 3705 | 4070 | 4070 |
| Load Length Mid-Height | 2464 | 2914 | 2914 | 3555 | 3555 | 3920 | 3920 |
| Load Width (max) | 1870 | 1870 | 1870 | 1870 | 1870 | 1870 | 1870 |
| Width Between Arches | 1422 | 1422 | 1422 | 1422 | 1422 | 1422 | 1422 |
| Load Height (max) | 1662 | 1662 | 1932 | 1932 | 2172 | 1932 | 2172 |
Fiat Ducato 2021 Dimensions
The Fiat Ducato 2021 offers versatile configurations, making it a practical choice for various commercial needs. This detailed guide focuses on key dimensions for the L1H1, L2H2, and L3H2 variations, including height, width, and payload capacity. Understanding these measurements can help you choose the best model for your space and load requirements.
Internal Cargo Dimensions (mm)
| Interior Dimensions | L1 H1 | L2 H2 | L3 H2 |
|---|---|---|---|
| Volume (m³) | 8 | 11.5 | 13 |
| Load Length at Floor | 2670 | 3120 | 3705 |
| Load Length at Mid-Height | 2464 | 2914 | 3555 |
| Load Width (max) | 1870 | 1870 | 1870 |
| Width Between Wheel Arches | 1422 | 1422 | 1422 |
| Load Height (max) | 1662 | 1932 | 1932 |
| Payload Capacity (kg) | Approx. 1,000 - 1,200 | Approx. 1,200 - 1,400 | Approx. 1,400 - 1,600 |
External Dimensions (mm)
| Exterior Dimensions | L1 H1 | L2 H2 | L3 H2 |
|---|---|---|---|
| Wheelbase | 3000 | 3450 | 4035 |
| Length | 4963 | 5413 | 5998 |
| Height | 2254 | 2522 | 2522 |
| Width (excl. mirrors) | 2050 | 2050 | 2050 |
| Front Overhang | 948 | 948 | 948 |
| Rear Overhang | 1015 | 1015 | 1015 |
Key Highlights for Fiat Ducato 2021 Variants
- L1H1: Compact and efficient with a volume of 8m³ and a moderate height of 2254mm, making it ideal for urban use.
- L2H2: A mid-sized option providing 11.5m³ of cargo space and increased load height for taller items.
- L3H2: Maximum cargo space of 13m³ and an extended length, suitable for larger loads while maintaining manoeuvrability.
Fiat Ducato Long-Wheelbase (LWB) Dimensions
The Fiat Ducato Long-Wheelbase (LWB) models, including the L3 and L4 versions, provide expansive cargo space and extended vehicle length, making them ideal for businesses and individuals with substantial transport needs. These configurations cater to high-capacity storage and versatility, essential for industries like logistics, mobile workshops, and trades that require both floor space and vertical clearance.
For those seeking to further customize their vehicle, explore Fiat Ducato LWB Customizations, which includes roof-mounted ladders and shelving systems to optimize storage and improve operational efficiency. It also includes seat covers like Driver Double Passenger Seat Covers for added comfort and protection.
Internal Cargo Dimensions (mm)
| Interior Dimensions | L3 H2 | L3 H3 | L4 H2 | L4 H3 |
|---|---|---|---|---|
| Volume (m³) | 13 | 15 | 15 | 17 |
| Load Length at Floor | 3705 | 3705 | 4070 | 4070 |
| Load Length at Mid-Height | 3555 | 3555 | 3920 | 3920 |
| Load Width (max) | 1870 | 1870 | 1870 | 1870 |
| Width Between Wheel Arches | 1422 | 1422 | 1422 | 1422 |
| Load Height (max) | 1932 | 2172 | 1932 | 2172 |
External Dimensions (mm)
Let’s take a look at the external dimensions of FIAT Ducato long wheelbase dimensions.
| Exterior Dimensions | L3 H2 | L3 H3 | L4 H2 | L4 H3 |
|---|---|---|---|---|
| Wheelbase | 4035 | 4035 | 4035 | 4035 |
| Length | 5998 | 5998 | 6363 | 6363 |
| Height | 2522 | 2760 | 2522 | 2760 |
| Width (excl. mirrors) | 2050 | 2050 | 2050 | 2050 |
| Front Overhang | 948 | 948 | 948 | 948 |
| Rear Overhang | 1015 | 1015 | 1380 | 1380 |
Fiat Fiorino Van Dimensions
The Fiat Fiorino is the smallest van in the Fiat Professional lineup, designed to excel in tight urban environments. Known for its compact size, this van offers practical cargo space while maintaining a manoeuvrable profile. Below is a breakdown of the Fiat Fiorino’s dimensions, covering external measurements, internal cargo space, and door access, making it easier to assess its suitability for city driving and light commercial use.
Fiat Fiorino 2022 dimensions
Below is a detailed breakdown of the Fiat Fiorino 2022 dimensions, including external size, internal cargo measurements, and payload capacity.
External Dimensions
| Dimensions | Measurement (mm) |
|---|---|
| Overall Length | 3957 |
| Overall Width | 1716 |
| Overall Height | 1721 |
| Wheelbase | 2513 |
| Front Overhang | 854 |
| Rear Overhang | 590 |
| Front Track | 1469 |
| Rear Track | 1465 |
Internal Cargo Dimensions
| Load Compartment Dimension | Measurement (mm) |
|---|---|
| Load Length | 1523 - 2491* |
| Max Width | 1473 |
| Width Between Wheel Arches | 1046 |
| Max Load Height | 1205 |
| Load Threshold (Ground to Cargo Floor) | 527 |
*Note: With the passenger seat folded forward, the load length extends to 2491mm.
Payload Capacity and Volume
| Specification | Measurement |
|---|---|
| Cargo Volume (m³) | 2.5 - 2.8* |
| Payload Capacity (kg) | Approx. 500 - 660 |
*Volume increases to 2.8m³ when the passenger seat is folded.
Highlights of the Fiat Fiorino 2022
- Compact Exterior for City Driving: With an overall length of 3957 mm and width of 1716 mm, the Fiorino is highly maneuverable, making it ideal for navigating narrow city streets and parking in tight spots.
- Flexible Cargo Options: The load length can extend to 2491mm with the passenger seat folded, providing extra space without sacrificing cabin usability.
- Payload Capacity: With a payload capacity ranging between 500-660 kg, the Fiorino 2022 can handle small to medium loads, catering to urban delivery needs effectively

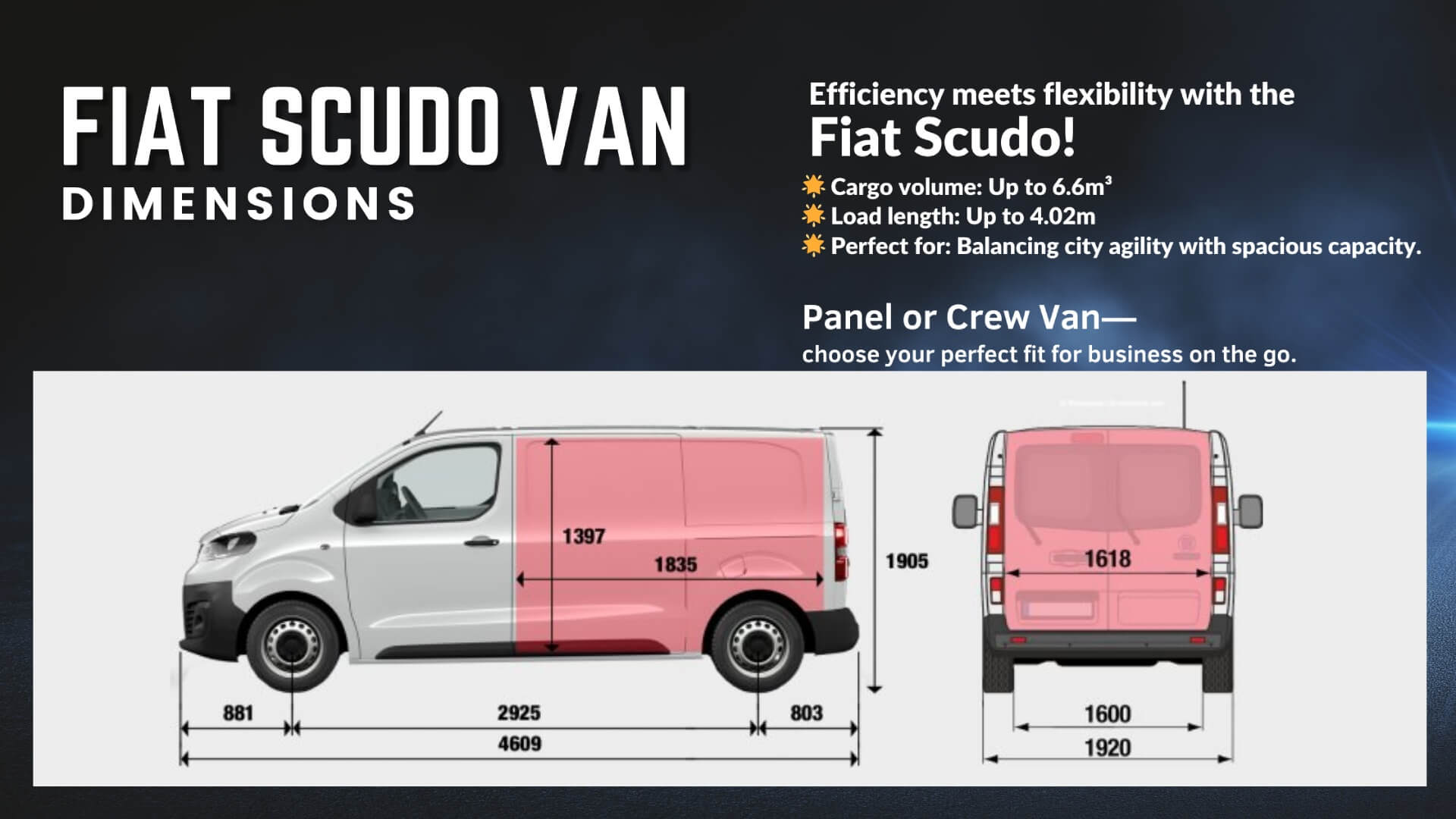

Fiat Scudo Van Dimensions
The Fiat Scudo van offers a versatile range of dimensions, designed for efficient cargo space and robust load-bearing capabilities. It’s available in both Panel Van and Crew Van configurations, catering to various commercial and personal needs. Below is a comprehensive breakdown of the Scudo’s essential dimensions.
For customization options like shelving and load solutions, explore Fiat Scudo Accessories like van racking, seat covers and roof bars.
External Dimensions
| Dimension | Measurement |
|---|---|
| External Length (m) | 4.96 / 5.31 |
| External Height (m) | 1.89 - 1.94 |
Internal Cargo Dimensions
| Cargo Compartment Dimension | Scudo Standard (L2H1) | Scudo Maxi (L2H1) |
|---|---|---|
| Max Cargo Volume (m³) | 5.3 - 5.8 | 6.1 - 6.6 |
| Max Load Compartment Length (m) | 2.51 - 3.67 | 2.86 - 4.02 |
| Load Compartment Height (mm) | 1390 | 1390 |
| Width of Rear Door (mm) | 1280 | 1280 |
The Fiat Scudo L2H1 is a versatile option for businesses that require a mix of substantial cargo space and practical dimensions. These detailed specifications provide a clear understanding of its load capacity and spatial configuration, aiding in choosing the right setup for specific operational needs.
Fiat Doblo Van Dimensions: Compact and Versatile for Urban Use
The Fiat Doblo is designed to meet the demands of urban environments, offering a compact yet versatile van suitable for various commercial needs. With its manageable size, efficient cargo space, and thoughtful design, the Doblo is ideal for businesses requiring a city-friendly vehicle that doesn’t compromise on internal load capacity.
Fiat Doblo 2010 Dimensions
The Fiat Doblo 2010 offers compact and versatile dimensions suitable for urban use. With two lengths (L1 and L2), multiple roof heights (H1, H2, H3), and a manageable wheelbase, this model can handle a variety of cargo needs while being easy to manoeuvre in city environments. Its interior cargo space, coupled with accessible door dimensions, makes it an excellent choice for light commercial and delivery tasks.
External Dimensions
| Dimension | L1 | L2 |
|---|---|---|
| Exterior Length (mm) | 4390 | 4740 |
| Exterior Length (inch) | 172.8 | 186.6 |
| Exterior Width (mm) | 2148 | 2148 |
| Exterior Width (inch) | 84.6 | 84.6 |
| Exterior Height (H1, mm) | 1845 | - |
| Exterior Height (H2, mm) | 1880 | - |
| Exterior Height (H3, mm) | 2125 | - |
Internal Cargo Dimensions
| Dimension | L1 | L2 |
|---|---|---|
| Interior Length (mm) | 1820 | 2170 |
| Interior Length (inch) | 71.7 | 85.4 |
| Interior Width (mm) | 1741 | 1741 |
| Interior Width (inch) | 68.5 | 68.5 |
| Interior Height (H1, mm) | 1305 | - |
| Interior Height (H2, mm) | 1550 | 1550 |
Note: All Fiat Doblo models have the same interior width of 1741 mm (68.5 inches).
Maximum Floor Surface
| Floor Area | L1 | L2 |
|---|---|---|
| Square Metres (m²) | 3.2 | 3.8 |
| Square Feet (ft²) | 34.1 | 40.7 |
Wheelbase
| Wheelbase | Measurement |
|---|---|
| Wheelbase Length (mm) | 3109 |
| Wheelbase Length (inch) | 122 |
Door Measurements
| Door Type | Measurement (mm) | Measurement (inch) |
|---|---|---|
| Rear Door Width | 1231 | 48.5 |
| Rear Door Height (H1) | 1235 | 48.6 |
| Rear Door Height (H2) | 1450 | 57.1 |
Fiat Talento Van Dimensions
The Fiat Talento is a versatile van offering flexibility in both cargo space and external dimensions, catering to a range of commercial needs. Below is a detailed breakdown of the Fiat Talento’s dimensions, covering external measurements, cargo space, and payload capacity based on the memorised specifications.
External Dimensions
| Dimension | Short Wheelbase (L1) | Long Wheelbase (L2) |
|---|---|---|
| Overall Length (mm) | 4999 | 5399 |
| Overall Width without Mirrors (mm) | 1956 | 1956 |
| Overall Width with Mirrors (mm) | 2283 | 2283 |
| Unladen Height (H1) | 1971 | 1967 |
| Unladen Height (H2) | 2495 | 2498 |
| Wheelbase (mm) | 3098 | 3498 |
| Front Overhang (mm) | 933 | 933 |
| Rear Overhang (mm) | 968 | 968 |
Cargo Space Dimensions
| Cargo Area Dimension | Short Wheelbase (L1) | Long Wheelbase (L2) |
|---|---|---|
| Cargo Volume (m³) (Low Roof) | 5.2 | 6 |
| Cargo Volume (m³) (High Roof) | 7.2 | 8.6 |
| Loading Length on Floor (mm) | 2537 | 2937 |
| Usable Length with Load-Through Facility (mm) | 2950 | 3350 |
| Usable Length with Load-Through into Footwell (mm) | 3750 | 4150 |
| Max Interior Width (mm) | 1662 | 1662 |
| Width Between Wheel Arches (mm) | 1268 | 1268 |
| Usable Height (H1) | 1387 | 1387 |
| Usable Height (H2) | 1898 | 1898 |
Door Dimensions
| Door Type | Width (mm) | Height (mm) |
|---|---|---|
| Sliding Side Door Entry Width | 907 (600mm from floor) / 1030 (100mm from floor) | 1284 |
| Rear Door Width | 1391 | 1320 (H1) / 1820 (H2) |
Key Highlights of the Fiat Talento
- Cargo Flexibility: With cargo volumes ranging from 5.2 m³ to 8.6 m³, the Talento is designed to handle a variety of load sizes, from compact deliveries to larger, bulky items.
- Enhanced Load-Through Facility: The CargoPlus option extends load lengths up to 4150 mm in the L2 model, ideal for carrying pipes or longer equipment.
- Dual Roof Heights: Options for low (H1) and high (H2) roof heights provide flexibility, with interior heights of 1387 mm and 1898 mm, respectively.
- Urban-Friendly Dimensions: With a maximum width of 2283 mm (including mirrors) and overall lengths manageable at 4999 mm (L1) and 5399 mm (L2), the Talento is suitable for both urban and suburban driving.
Fiat Talento L1H1 Twin Door Dimensions: Detailed Overview
The Fiat Talento L1H1 twin door model provides a compact yet spacious cargo area with easy accessibility, making it ideal for urban and commercial use. Below is a detailed breakdown of the internal dimensions and door measurements for the Fiat Talento L1H1 twin door model, focusing on cargo capacity and access features.
For optimizing your cargo space and improving access, check out Fiat Tolento L1H1 Accessories.
External Dimensions
| Dimension | Measurement |
|---|---|
| Overall Length | 4999 mm |
| Overall Width (without mirrors) | 1956 mm |
| Overall Height (H1) | 1971 mm |
| Wheelbase | 3098 mm |
Internal Cargo Space Dimensions
| Internal Cargo Dimension | Measurement |
|---|---|
| Cargo Volume | 5.2 m³ |
| Load Compartment Length on Floor | 2537 mm |
| Usable Length with Load-Through Facility | 2950 mm |
| Usable Length with Load-Through into Footwell | 3750 mm |
| Maximum Interior Width | 1662 mm |
| Width Between Wheel Arches | 1268 mm |
| Usable Interior Height | 1387 mm |
Door Dimensions
| Door Type | Width (mm) | Height (mm) |
|---|---|---|
| Sliding Side Door Width | 907 (600 mm from floor) / 1030 (100 mm from floor) | 1284 |
| Rear Twin Door Width | 1391 | 1320 |
Key Features of the Fiat Talento L1H1 Twin Door Model
- Accessible Cargo Space: With a cargo volume of 5.2 m³ and a load compartment length of 2537 mm, the Talento L1H1 provides ample room for cargo, with the load-through facility extending usable length to 3750 mm.
- Twin Rear Doors: The rear twin doors, measuring 1391 mm in width and 1320 mm in height, allow for easy access and loading, especially in tight spaces where side loading may be limited.
- Convenient Side Door Access: The sliding side door has a variable entry width from 907 mm (600 mm from floor) to 1030 mm (100 mm from floor), ensuring quick and flexible access from the side.
- Compact Dimensions for Urban Use: With an overall length of 4999 mm and a manageable height, the L1H1 twin door model is ideal for manoeuvring through urban environments while maintaining substantial cargo capacity.
FAQs for Fiat Van Dimensions
What are the roof height options for Fiat vans?
The Fiat Ducato, for example, offers roof height options ranging from a standard roof of approximately 2.25 metres to a high roof reaching around 2.76 metres, depending on the model variant.
How wide is the Fiat Ducato with mirrors extended?
With mirrors extended, the Fiat Ducato measures approximately 2.1 metres, making it essential to consider when navigating narrow spaces
What is the turning circle of the Fiat Fiorino?
The Fiat Fiorino has a turning circle of about 10.5 metres, allowing it to manoeuvre easily in tight urban spaces.
How does the Fiat Ducato compare to other vans in terms of dimensions?
Compared to larger vans like the Mercedes Sprinter, the Fiat Ducato is slightly more compact in height and length but offers versatile cargo space and easier handling in city environments.
What are the interior dimensions of the Fiat Scudo Crew Van?
The Crew Van variant of the Fiat Scudo provides a slightly reduced cargo area with a load length of around 2.18 metres, retaining the same width and height as the standard version for added passenger seating.
Does the Fiat Talento have a flat load floor?
Yes, the Fiat Talento features a flat load floor, facilitating easy loading and unloading of goods, which is particularly advantageous for commercial use.
What is the wheelbase of the Fiat Doblo?
The Fiat Doblo offers a wheelbase of 2.755 metres for the short model and 3.105 metres for the long version, striking a balance between interior cargo space and manoeuvrability.
How much does the Fiat Ducato weigh?
The curb weight of the Fiat Ducato varies by model, starting around 1,905 kg, with a Gross Vehicle Weight (GVW) reaching up to 3,500 kg for specific configurations.
