Understanding the dimensions of Ford vans, including the Transit, Custom, and Courier models, is crucial for selecting the right vehicle. Each model serves distinct transport needs—offering varying levels of cargo space, urban maneuverability, and versatility to meet specific demands.
This guide provides a comprehensive breakdown of the internal and external dimensions of each variant, enabling you to determine which model aligns best with your needs. The Ford Transit excels in heavy-duty transport with maximum capacity, while the Ford Courier offers compact agility, perfect for urban environments. The Ford Custom strikes a balance between size and functionality, making it ideal for both commercial and personal use.
Whether you’re seeking a van for business logistics or daily operations, this guide equips you with the key size and capacity insights to make the best choice.

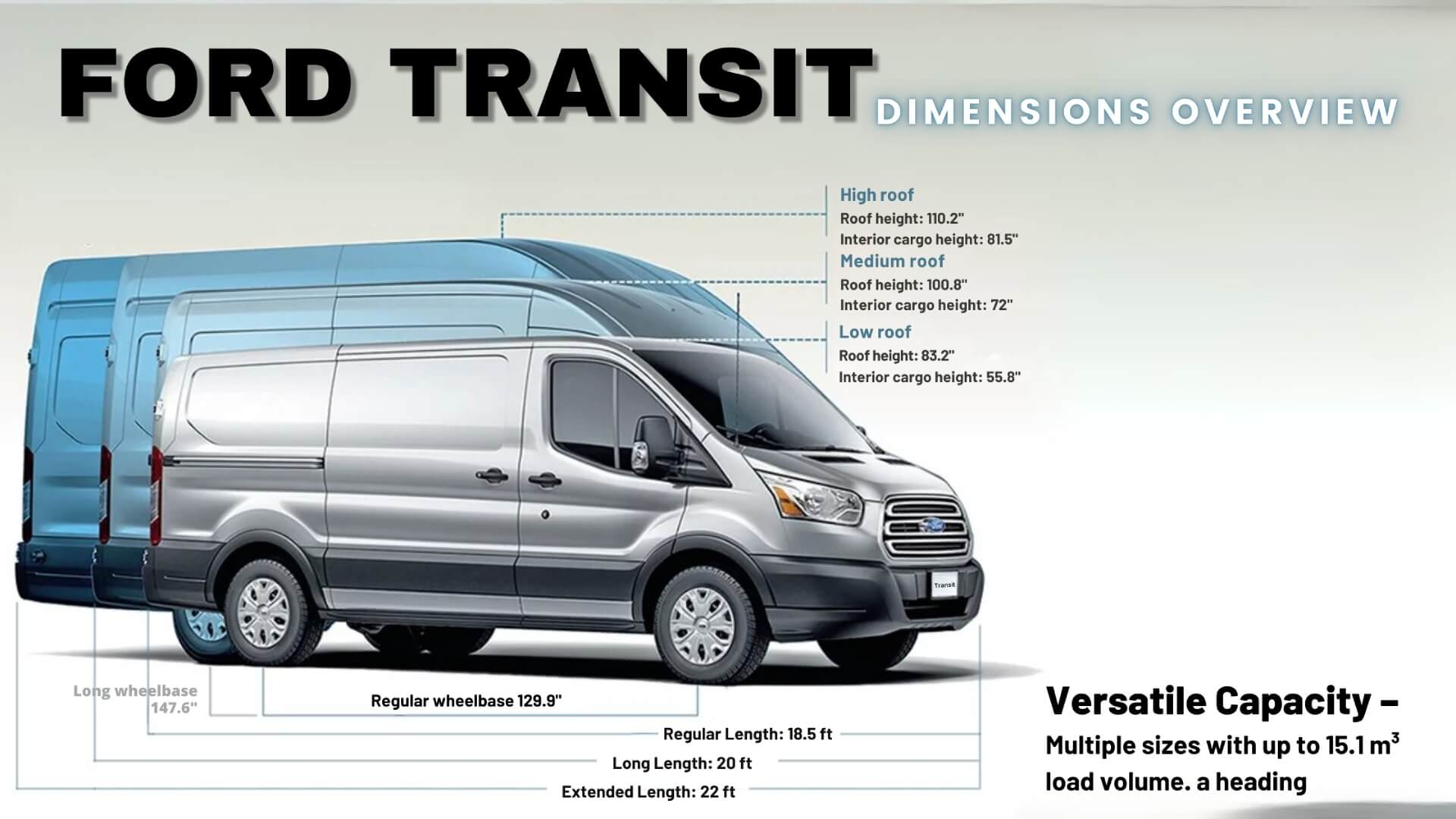

What Are the Dimensions of the Ford Transit Van?
The Ford Transit van is available in a range of sizes to cater to various transportation needs, from the compact Short Wheelbase (SWB) to the expansive Long Wheelbase (LWB) models. Understanding the overall dimensions of each variant is crucial for determining which model best suits your requirements. In this section, we provide a detailed overview of the height, length, width, and internal space for the SWB, MWB, and LWB models, helping you make an informed decision.
Ford Transit SWB Dimensions
The Ford Transit SWB (Short Wheelbase) model offers a compact yet practical solution for transporting goods, making it ideal for urban deliveries and smaller load requirements. This model strikes a balance between external manoeuvrability and internal cargo capacity. Below, we highlight its internal cargo dimensions and the external height and length, ensuring you have a clear understanding of its practical capabilities. For details on enhancing your van’s functionality, check out Ford SWB van accessories like Festool Rear Van Rack and OS & NS Rear Van Racking.
| Dimension | Measurement |
|---|---|
| Overall Length: | 5,531 mm |
| Overall Height: | 2,490 mm |
| Loadspace Length: | 2,946 mm |
| Loadspace Width: | 1,784 mm |
| Loadspace Height: | 1,886 mm |
| Load Volume: | 10 m³ |
Ford Transit MWB and LWB Dimensions: A Comparison
When choosing between the Ford Transit MWB (Medium Wheelbase) and Ford Transit LWB (Long Wheelbase), understanding their differences in cargo space is essential. Both models provide excellent options for commercial use, but the LWB’s extended length and increased load volume make it ideal for larger, heavier loads. The MWB offers a compact yet spacious option, balancing manoeuvrability with ample cargo capacity.
This makes it suitable for tradespeople transporting tools or delivery drivers handling larger items without needing the LWB model’s added bulk. Below is a detailed comparison of each variant’s internal cargo length and height, helping you choose the best fit for your specific transport needs.
| Feature | Ford Transit MWB (L3) | Ford Transit LWB (L4) |
|---|---|---|
| Wheelbase Length | 3,750 mm | 3,750 mm |
| Overall Length | 5,931 mm | 6,704 mm |
| Loadspace Length | 3,494 mm | 4,217 mm |
| Loadspace Height (Low Roof) | 1,886 mm | N/A |
| Loadspace Height (High Roof) | 2,125 mm | 2,025 mm |
| Load Volume (Low Roof) | 11.5 m³ | N/A |
| Load Volume (High Roof) | 13.0 m³ | 15.1 m³ |
Ford Transit Custom Dimensions: Interior vs Exterior Size
Exterior Dimensions
| Category | L1H1 | L1H2 | L2H1 | L2H2 |
|---|---|---|---|---|
| Overall Length (mm) | 4,972 | 4,972 | 5,339 | 5,339 |
| Overall Width (with mirrors) (mm) | 2,272 | 2,272 | 2,272 | 2,272 |
| Overall Height (mm) | 2,020 | 2,389 | 2,020 | 2,389 |
| Wheelbase (mm) | 2,933 | 2,933 | 3,300 | 3,300 |
| Turning Circle (k to k) (m) | 10.9 | 10.9 | 12.2 | 12.2 |
Interior Dimensions
| Category | L1H1 | L1H2 | L2H1 | L2H2 |
|---|---|---|---|---|
| Rear Door Width (mm) | 1,404 | 1,404 | 1,404 | 1,404 |
| Rear Door Height (mm) | 1,347 | 1,706 | 1,347 | 1,706 |
| Side Door Width (mm) | 1,030 | 1,030 | 1,030 | 1,030 |
| Side Door Height (mm) | 1,324 | 1,324 | 1,324 | 1,324 |
| Loading Height (Sill Height) (mm) | 588 | 588 | 588 | 588 |
| Loadspace Length (mm) | 2,555 | 2,555 | 2,922 | 2,922 |
| Loadspace Width (mm) | 1,775 | 1,775 | 1,775 | 1,775 |
| Between Wheelarches (mm) | 1,390 | 1,390 | 1,390 | 1,390 |
| Loadspace Height (mm) | 1,406 | 1,778 | 1,406 | 1,778 |
| Load Volume (m³) | 5.4 | 6.6 | 6.2 | 7.7 |
Key Differences:
- Roof Heights: The High Roof (H2) provides significantly more headroom, with an internal height of 1,778 mm compared to 1,406 mm for the Low Roof (H1).
- Load Volume: The High Roof (H2) offers a larger load volume, with up to 7.7 m³ for the L2H2 variant, whilst the Low Roof (H1) offers 5.4 m³ in the L1H1.
- Overall Height: The external height also differs, with the High Roof variants standing at 2,389 mm, compared to 2,020 mm for the Low Roof models.
How Big Is the Ford Transit Custom?
The Ford Transit Custom is a versatile van that offers varying dimensions to suit different transport needs. It comes with two roof height options: Low Roof (H1) and High Roof (H2), as well as two wheelbase lengths: L1 (short wheelbase) and L2 (long wheelbase). Below, we outline the key external and internal dimensions for the Transit Custom, highlighting the main differences between the roof heights.For businesses looking to optimize space, Ford custom shelving and storage offers excellent solutions to maximize the van’s internal storage and organization. It offers options like OS Front Angled Shelf Van Racking.
Key Dimensions for the Ford Transit Custom:
| Exterior Dimensions | L1H1 | L1H2 | L2H1 | L2H2 |
|---|---|---|---|---|
| Overall Length (mm) | 4,972 | 4,972 | 5,339 | 5,339 |
| Overall Width (with mirrors) (mm) | 2,272 | 2,272 | 2,272 | 2,272 |
| Overall Height (mm) | 2,020 | 2,389 | 2,020 | 2,389 |
| Wheelbase (mm) | 2,933 | 2,933 | 3,300 | 3,300 |
| Turning Circle (k to k) (m) | 10.9 | 10.9 | 12.2 | 12.2 |
| Interior Dimensions | L1H1 | L1H2 | L2H1 | L2H2 |
|---|---|---|---|---|
| Rear Door Width (mm) | 1,404 | 1,404 | 1,404 | 1,404 |
| Rear Door Height (mm) | 1,347 | 1,706 | 1,347 | 1,706 |
| Side Door Width (mm) | 1,030 | 1,030 | 1,030 | 1,030 |
| Side Door Height (mm) | 1,324 | 1,324 | 1,324 | 1,324 |
| Loadspace Length (mm) | 2,555 | 2,555 | 2,922 | 2,922 |
| Loadspace Height (mm) | 1,406 | 1,778 | 1,406 | 1,778 |
| Load Volume (m³) | 5.4 | 6.6 | 6.2 | 7.7 |
Key Differences:
- Roof Heights: The High Roof (H2) provides significantly more headroom, with an internal height of 1,778 mm compared to 1,406 mm for the Low Roof (H1).
- Load Volume: The High Roof (H2) offers a larger load volume, with up to 7.7 m³ for the L2H2 variant, whilst the Low Roof (H1) offers 5.4 m³ in the L1H1.
- Overall Height: The external height also differs, with the High Roof variants standing at 2,389 mm, compared to 2,020 mm for the Low Roof models.
What Are the Internal Dimensions of the Ford Transit Custom Van?
The Ford Transit Custom is designed to provide ample internal space for various operations, offering flexibility for both small and large loads. Below are the detailed internal dimensions of the Ford Transit Custom, focusing on key aspects like load length, height, and width, which directly impact usability for different van operations.
Internal Dimensions of the Ford Transit Custom:
| Dimensions | L1H1 | L1H2 | L2H1 | L2H2 |
|---|---|---|---|---|
| Loadspace Length (mm) | 2,555 | 2,555 | 2,922 | 2,922 |
| Loadspace Width (mm) | 1,775 | 1,775 | 1,775 | 1,775 |
| Between Wheelarches (mm) | 1,390 | 1,390 | 1,390 | 1,390 |
| Loadspace Height (mm) | 1,406 | 1,778 | 1,406 | 1,778 |
| Load Volume (m³) | 5.4 | 6.6 | 6.2 | 7.7 |
Usability for Different Operations:
- Load Length: The L1 models provide a load length of 2,555 mm, whilst the L2 models extend this to 2,922 mm, making the L2 variants better suited for longer cargo or larger deliveries.
- Load Height: The High Roof (H2) models, with an internal height of 1,778 mm, are ideal for operations requiring additional vertical space, such as transporting taller items or working inside the van. The Low Roof (H1) models have a height of 1,406 mm, which is suitable for standard-sized loads.
- Load Width: With a load space width of 1,775 mm across all variants, and 1,390 mm between the wheel arches, the Transit Custom provides sufficient width for carrying standard pallets and other wide cargo.
How Tall Is the Ford Transit Connect Van?
The Ford Transit Connect offers two variants: SWB (L1) and LWB (L2). Both models provide similar external heights but differ in other aspects like load length and capacity. Below is a breakdown of the height specifications for each model and how they influence cargo space.
Ford Transit Connect Dimensions
| Dimension | Transit Connect SWB (L1) | Transit Connect LWB (L2) |
|---|---|---|
| Overall Height (mm) | 1,830 | 1,828 |
| Internal Load Height (mm) | 1,269 | 1,269 |
| Overall Length (mm) | 4,425 | 4,825 |
| Loadspace Length (mm) | 1,786 | 2,152 |
| Load Volume (m³) | 2.9 | 3.6 |
| Rear Door Opening Height (mm) | 1,202 | 1,156 |

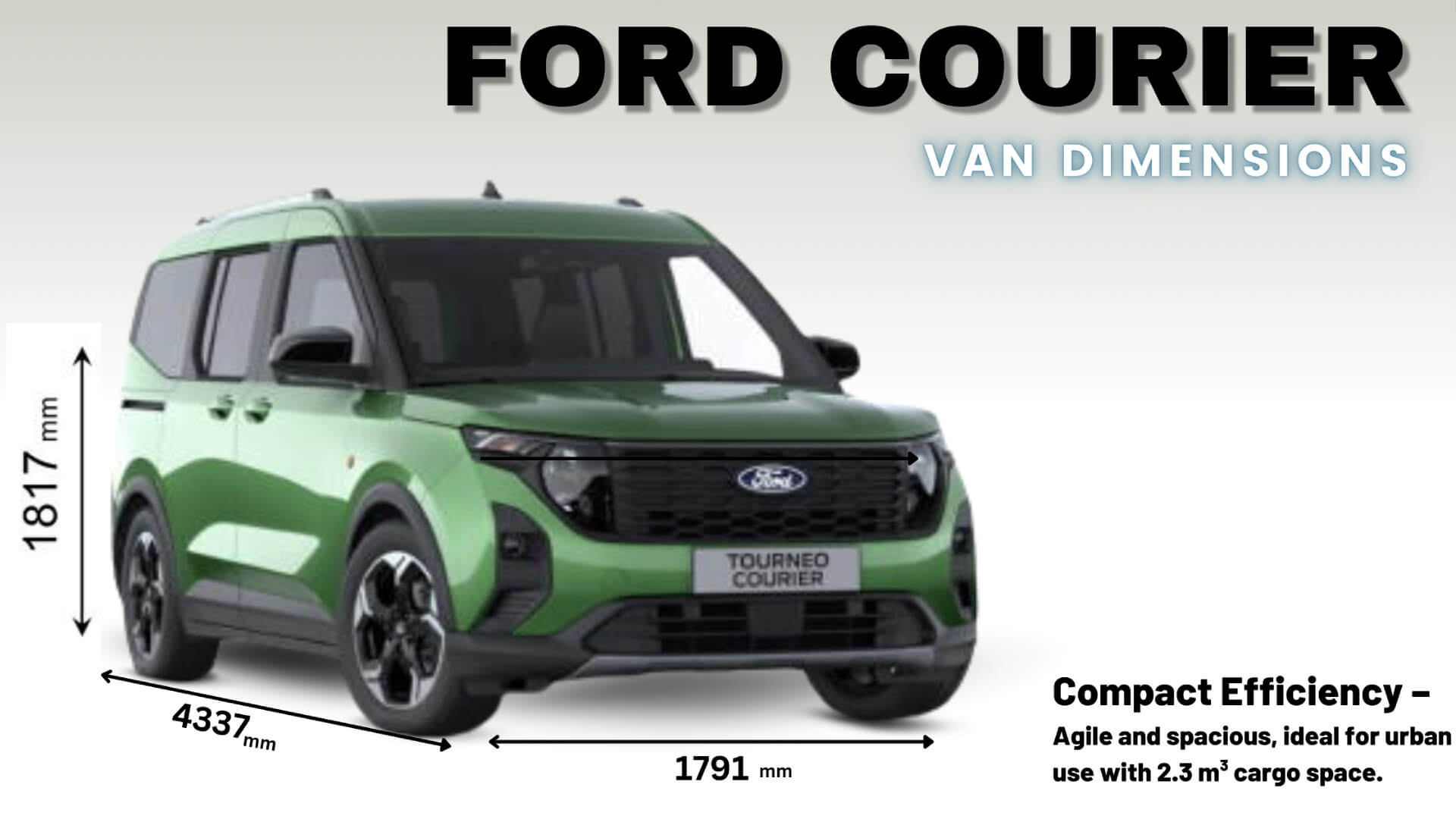

What Are the Dimensions of the Ford Transit Courier Van?
The Ford Transit Courier is the smallest van in the Transit range, offering a practical solution for businesses needing a compact yet capable vehicle. Designed for urban environments, the Transit Courier combines excellent manoeuvrability with a surprisingly spacious interior for its size. Below are the key dimensions, focusing on its external size and internal cargo capacity.
Ford Transit Courier Dimensions
| Dimension | Measurement |
|---|---|
| Overall Length (mm) | 4,157 |
| Overall Height (mm) | 1,747 |
| Overall Width (with mirrors) | 1,976 |
| Internal Load Length (mm) | 1,620 |
| Internal Load Height (mm) | 1,244 |
| Load Volume (m³) | 2.3 |
Ford Transit SWB, MWB, and LWB Dimensions
The Ford Transit SWB (Short Wheelbase) is ideal for businesses operating in urban areas, thanks to its compact size and easy manoeuvrability. It offers a load length of 1,786 mm and a load volume of 2.9 m³, making it suitable for smaller deliveries and tight spaces.
The Ford Transit MWB (Medium Wheelbase) provides more cargo space, with an internal load length of 3,494 mm and a volume of 11.5 m³ (Low Roof) or 13.0 m³ (High Roof). This makes it versatile for businesses needing more capacity without sacrificing agility. This model strikes a balance between size and usability.
The Ford Transit LWB (Long Wheelbase) model offers the most significant cargo space, with a load length of 4,217 mm and a volume of 15.1 m³. This model best suits businesses transporting large or bulky items, offering maximum space and load capacity for long-distance or heavier cargo.
In summary, SWB is perfect for city-based operations, MWB is ideal for businesses needing more flexible space, and LWB is best for large-load or long-haul tasks.
Frequently Asked Questions
Is the Ford Transit Courier a small wheelbase van?
Yes, the Ford Transit Courier is a compact van designed for urban environments. Its short overall length of 4,157 mm makes it smaller than other Transit models.
What is the Ford Transit Custom height in meters?
The Ford Transit Custom’s height varies depending on the roof type:
- Low Roof (H1): 2.02 meters
- High Roof (H2): 2.389 meters
What is the Ford Transit Custom load capacity?
The Ford Transit Custom’s load capacity depends on the model:
- L1H1: 5.4 m³
- L1H2: 6.6 m³
- L2H1: 6.2 m³
- L2H2: 7.7 m³
