Renault’s versatile lineup of vans-from the compact Kangoo to the heavy-duty Master-provides adaptable solutions for diverse commercial and transportation needs. Designed to meet specific requirements, each model offers unique dimensions and configurations. The Renault Kangoo is an agile option for urban logistics, available in various formats like short-wheelbase, long-wheelbase, and crew van versions.
For businesses needing greater load capacity, the Renault Master is ideal, featuring a range of configurations suited for larger cargo. Positioned between these models, the Renault Trafic delivers medium-sized functionality, making it a popular choice for tradespeople and small businesses.
This guide details the internal and external dimensions of the Kangoo, Kangoo3, Master, and Trafic, covering essential measurements like cargo volume, load length, internal height, and wheelbase. With this information, you can determine which Renault van best aligns with your operational demands, ensuring the right fit for urban navigation or heavy-duty transport.
Renault Kangoo Van Dimensions
The Renault Kangoo van, launched in 2008, has proven to be a popular choice in the small van sector, competing with models like the Citroen Berlingo and Ford Transit Connect. Available in both short-wheelbase (L1H1) and long-wheelbase (L2H1) versions, the Kangoo offers flexibility in terms of load space and functionality.
To further enhance the Kangoo’s practicality, a range of accessories, such as roof racks and roof bars, are available to maximise storage capacity. Whether you’re transporting bulky items or additional equipment, these additions provide the ideal solution for managing your load.
Key Dimensions For Renault Kangoo Van
| Renault Kangoo Version | Van (L1H1 SWB) | Maxi Van (L2H1 LWB) |
|---|---|---|
| Length (mm) | 4,282 | 4,666 |
| Height (mm) | 1,805-1,844 | 1,810-1,826 |
| Width including mirrors (mm) | 2,138 | 2,138 |
| Width excluding mirrors (mm) | 1,829 | 1,829 |
| Wheelbase (mm) | 2,697 | 3,081 |
| Load length at floor (mm) | 1,731 | 2,115 |
| Load length with folding passenger seat (mm) | 2,502 | 2,886 |
| Load height (mm) | 1,129 | 1,129 |
| Load width (mm) | 1,141-1,219 | 1,141-1,219 |
| Width between wheel arches (mm) | 1,218 | 1,218 |
| Sill height (mm) | 588-609 | 575-601 |
| Load volume (cubic metres) | 3.0-3.6 | 4.0-4.6 |
Renault Kangoo L1H1 Dimensions
The Renault Kangoo L1H1 (short-wheelbase) is designed to meet the needs of businesses requiring a compact van with efficient internal space, practical payload capacity, and manageable overall dimensions. This model balances size and functionality, making it ideal for urban deliveries and smaller cargo loads. Below is a detailed breakdown focusing on the internal space, payload capacity, and overall length of the Kangoo L1H1.
Renault Kangoo L1H1 Dimensions Table
| Dimension | Kangoo L1H1 (SWB) |
|---|---|
| Overall length (mm) | 4,282 |
| Overall height (mm) | 1,805-1,844 |
| Width including mirrors (mm) | 2,138 |
| Width excluding mirrors (mm) | 1,829 |
| Wheelbase (mm) | 2,697 |
| Internal load length at floor (mm) | 1,731 |
| Internal load length with folding passenger seat (mm) | 2,502 |
| Internal load height (mm) | 1,129 |
| Internal load width (mm) | 1,141-1,219 |
| Width between wheel arches (mm) | 1,218 |
| Sill height (mm) | 588-609 |
| Load volume (cubic metres) | 3.0-3.6 |
| Payload capacity (kg) | 671-786 |
Renault Kangoo3 Dimensions

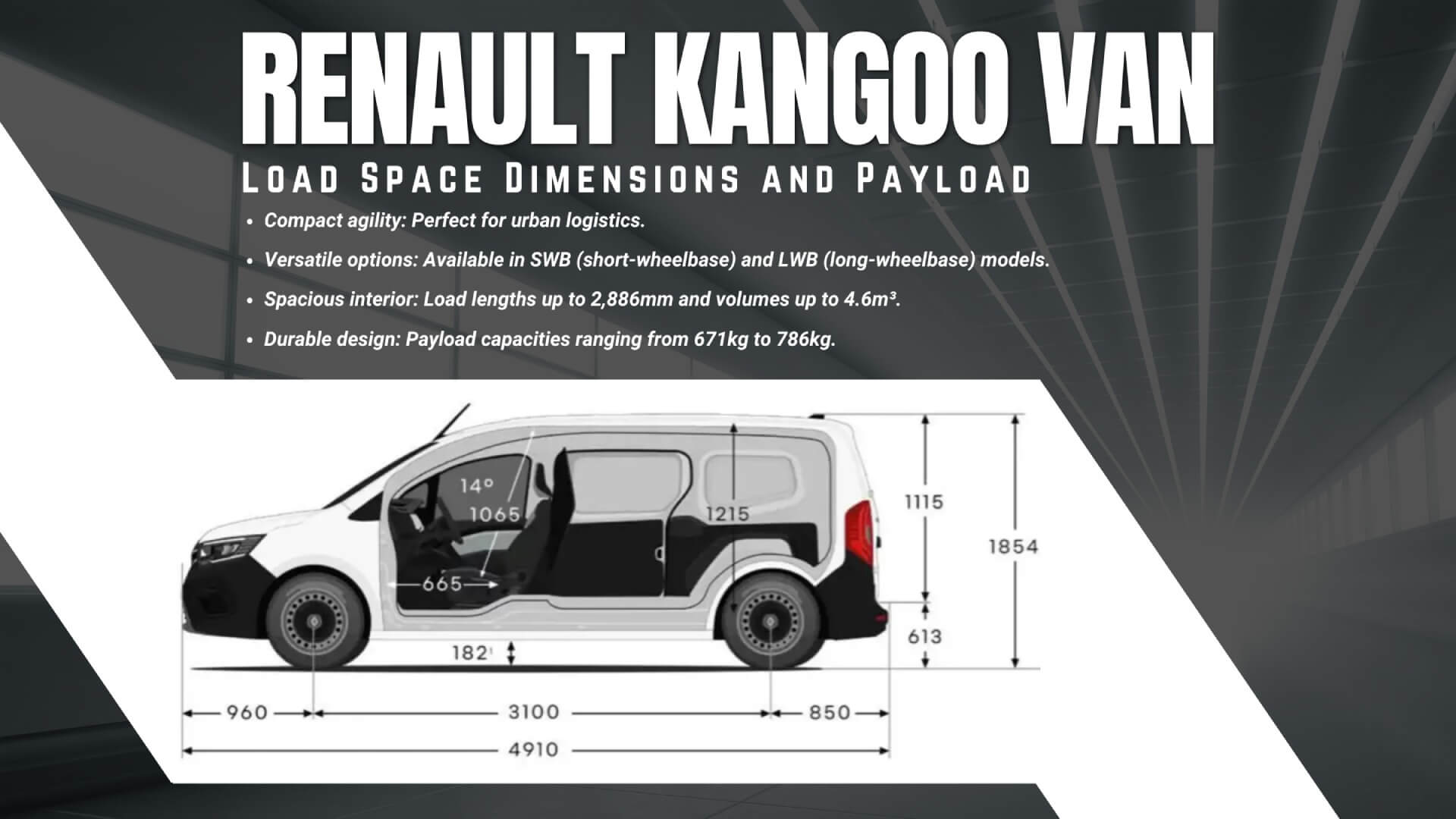

The Renault Kangoo 3 (2020+) offers flexibility in design and practicality, making it a strong contender in the small van segment. Available in two lengths—ML (medium wheelbase) and LL (long wheelbase)—the Kangoo 3 provides variations in load capacity and configurations to suit different business needs, including twin door configurations. Both versions share similar height and internal features, ensuring optimal usability regardless of the specific model. Below is a detailed breakdown focusing on load capacity and key dimensional variations for the Renault Kangoo 3.
Renault Kangoo 3 Dimensions (2020+)
| Dimension | Kangoo ML (MWB) | Kangoo LL (LWB) |
|---|---|---|
| Overall length (mm) | 4,486 | 4,910 |
| Height (mm) | 1,864 | 1,854 |
| Width with door mirrors (mm) | 2,159 | 2,159 |
| Width with mirrors folded (mm) | 1,919 | 1,860 |
| Width without door mirrors (mm) | 1,584 | 1,584 |
| Wheelbase (mm) | 2,716 | 3,100 |
Renault Kangoo 3 Load Area Dimensions
| Dimension | Kangoo ML (MWB) | Kangoo LL (LWB) |
|---|---|---|
| Maximum load length (mm) | 1,806 | 2,230 |
| Maximum load height (mm) | 1,215 | 1,248 |
| Maximum load width (mm) | 1,570 | 1,570 |
| Width between wheel arches (mm) | 1,248 | 1,248 |
| Rear door opening height (mm) | 1,115 | 1,115 |
| Rear door opening width (mm) | 1,256 | 1,256 |
| Load volume (cubic metres) | 3.3 | 4.2 |
Renault Kangoo 3 Payload and Towing Capacity
| Dimension | Kangoo ML (MWB) | Kangoo LL (LWB) |
|---|---|---|
| Maximum payload (kg) | 850 | 987 |
| Braked towing capacity (kg) | 1,500 | 1,500 |
| Unbraked towing capacity (kg) | 750 | 750 |
Renault Master Van Dimensions
The Renault Master offers one of the most versatile range configurations in the large van market, with multiple combinations of load lengths, roof heights, and drive types. Available from the compact L1H1 to the extra-long L4H2, this van caters to a wide array of commercial needs. Both twin door and tailgate configurations are available, adding flexibility for specific loading and unloading requirements.
The Renault Master van offers outstanding versatility, and with a range of accessories like roof racks and roof bars, you can optimise its load-carrying capabilities.
Renault Master L1H1 Dimensions
The Renault Master L1H1 is the smallest in the range, ideal for businesses needing a compact, manoeuvrable van. This front-wheel-drive model is available with low and medium roof options, providing a cargo space of 8 to 9 cubic metres. The load length measures 2,583mm, and with an overall length of 5,075mm, it is compact enough for urban environments while offering practical cargo capacity.
| Dimension | Renault Master L1H1 |
|---|---|
| Load length (mm) | 2,583 |
| Overall length (mm) | 5,075 |
| Load volume (cubic metres) | 8-9 |
| Load height (mm) | 1,700-1,894 |
| Width between wheel arches (mm) | 1,380 |
| Effective width (mm) | 1,765 |
| Payload (kg) | 8,000-9,000 |
This version is perfect for businesses that need a smaller van but still require ample cargo space.
Renault Master L3H2 and L4H2 Dimensions
The Renault Master L3H2 and L4H2 models are long-wheelbase vans designed to maximise cargo volume while maintaining a practical footprint. The L3H2 offers a load length of 3,733mm and a cargo volume of 13 cubic metres, while the L4H2 extends the load length to 4,383mm, providing a cargo volume of 14.9 cubic metres for front-wheel drive models and 17 cubic metres for rear-wheel drive variants.
| Dimension | Renault Master L3H2 | Renault Master L4H2 |
|---|---|---|
| Load length (mm) | 3,733 | 4,383 |
| Overall length (mm) | 6,225 | 6,875 |
| Load volume (cubic metres) | 13 | 14.9-17 |
| Load height (mm) | 1,894-2,144 | 1,894-2,144 |
| Width between wheel arches (mm) | 1,380 | 1,380 |
| Effective width (mm) | 1,765 | 1,765 |
| Payload (kg) | Up to 17,000 | Up to 17,000 |
These larger versions of the Renault Master are ideal for businesses that require substantial cargo space, such as logistics companies and tradespeople working with large tools and materials. Both the L3H2 and L4H2 come with various roof heights, door configurations, and payload options, making them adaptable to a wide range of commercial needs.
Renault Trafic L1H1 Dimensions
The Renault Trafic L1H1 is a versatile option within the Trafic range, offering compact dimensions with a spacious load area ideal for urban driving and commercial tasks. The short wheelbase (L1) and low roof (H1) configuration provide a balance between manoeuvrability and cargo capacity, making it a popular choice for tradespeople and businesses that require efficient transportation solutions.
| Specification | Dimension (mm) |
|---|---|
| Overall Length | 4,999 |
| Overall Width (with mirrors) | 2,283 |
| Overall Height | 1,971 |
| Wheelbase | 3,098 |
| Turning Circle (kerb-to-kerb) | 11.8 metres |
| Rear Door Width | 1,391 |
| Rear Door Height | 1,320 |
| Side Door Width | 1,030 |
| Side Door Height | 988 |
| Loading Height (sill height) | 552 |
| Loadspace Length | 2,537 |
| Loadspace Width | 1,662 |
| Loadspace Height | 1,387 |
| Between Wheel Arches | 1,268 |
Renault Trafic L2H2 Dimensions
The Renault Trafic L2H2 offers extended space and height, making it ideal for transporting larger cargo. With a long wheelbase (L2) and high roof (H2), this variant maximises cargo capacity while still being manoeuvrable enough for commercial use in urban environments.
| Specification | Dimension (mm) |
|---|---|
| Overall Length | 5,399 |
| Overall Width (with mirrors) | 2,283 |
| Overall Height | 2,465 |
| Wheelbase | 3,498 |
| Turning Circle (kerb-to-kerb) | 13.1 metres |
| Rear Door Width | 1,391 |
| Rear Door Height | 1,820 |
| Side Door Width | 1,030 |
| Side Door Height | 988 |
| Loading Height (sill height) | 552 |
| Loadspace Length | 2,937 |
| Loadspace Width | 1,662 |
| Loadspace Height | 1,898 |
| Between Wheel Arches | 1,268 |
FAQs For Renault Van Dimensions
What is the load capacity of the Renault Kangoo L1H1?
The Renault Kangoo L1H1 offers a load volume between 3.0 and 3.6 cubic metres and can handle a payload of 671-786 kg, making it ideal for small to medium deliveries.
How does the Renault Kangoo ML compare to the LL version regarding load space?
The Kangoo ML (Medium Wheelbase) has a load length of 1,806mm, while the Kangoo LL (Long Wheelbase) extends to 2,230mm, providing more space for larger items.
What is the payload capacity of the Renault Kangoo 3?
The Kangoo 3 ML has a payload of 850kg, and the LL version can carry up to 987 kg, making both suitable for heavier cargo.
What are the load dimensions of the Renault Master L3H2?
The Renault Master L3H2 offers a load length of 3,733mm and a volume of 13 cubic metres, making it suitable for transporting large quantities of goods.
What is the maximum load length of the Renault Trafic L1H1?
The Renault Trafic L1H1 provides a load length of 2,537mm, which can extend to 3,750mm using the load-through facility.
How much cargo can the Renault Trafic L2H2 carry?
The Renault Trafic L2H2 has a load volume of 8.6 cubic metres, making it ideal for businesses needing to transport bulkier items.
Which Renault van is best for small urban deliveries?
The Renault Kangoo L1H1 is perfect for compact urban deliveries due to its smaller size and load volume of 3.0-3.6 cubic metres, while still offering a practical payload capacity.
